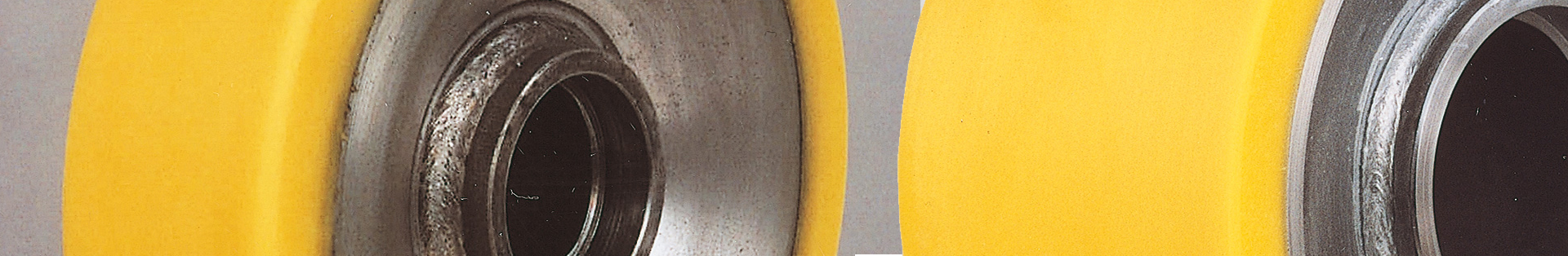

  • images/slider-pol.jpg

Polyurethane wheels

Construction: sheet steel carrying body and polyurethane coating.
Use: for towed or manually moved tow-trolley used internal transport.
Speed: Max speed 6 km/h.
Capacity: there are indicatif names that can change according to different way or use.

All these wheels are workable with hub of passing hole or your design.

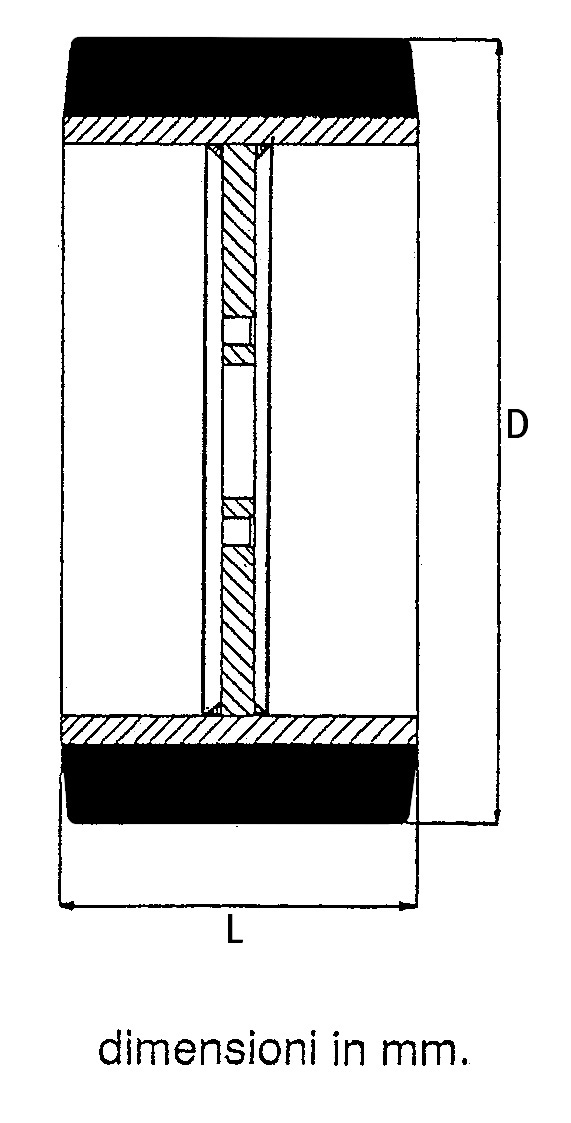

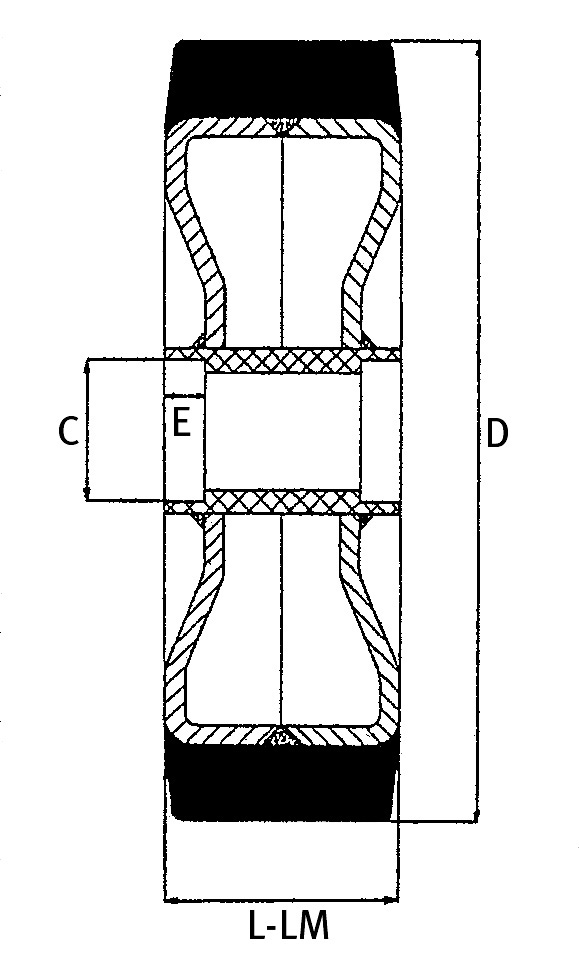

Diameter Width a Hub a Bearing hole Capacity Weigh
D L LM C E F
mm mm mm mm mm mm Kg Kg
200 60 60 62 16 30 1200 5,00
200 80 80 62 16 30 1800 5,50
200 100 100 62 16 30 2200 7,00
200 120 120 72 17 35 2500 8,50
250 60 60 62 16 30 1500 7,00
250 80 80 62 16 30 2000 9,00
250 100 100 62 16 30 2400 10,00
250 120 120 72 17 35 3000 12,00
250 150 150 72 17 35 3800 15,00
300 60 60 62 16 30 1500 8,50
300 80 80 62 16 30 2500 11,50
300 100 100 72 17 35 2900 13,00
300 120 120 72 17 35 3500 15,00
300 150 150 90 23 40/50 4500 23,00
300 200 200 90 23 40/50 5800 27,00
350 80 80 72 17 35 2600 14,00
350 100 100 90 23 40/50 3200 17,00
350 150 150 90 23 40/50 5000 27,00
350 200 200 90 23 40/50 6000 35,00
400 80 80 90 23 40/50 3000 17,00
400 100 100 90 23 40/50 3500 20,00
400 120 120 90 23 40/50 4000 22,00
400 150 150 110 22 60 5500 33,00
400 200 200 110 22 60 6200 34,20
500 100 100 90 23 40/50 3600 32,00
500 120 120 90 23 40/50 4500 35,00
500 150 150 110 22 60 6000 48,00
500 200 200 110 22 60 7500 57,00
